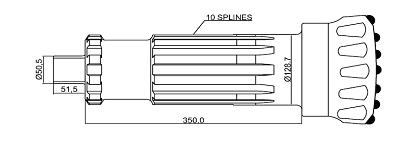

DHD 380 Bit

DHD 380 Specification

Part Number Bit Diameter Face Flushing Holes Guage Button Face Button Cone Button Weight
Suitable Hammer’s:
INCH MM Outer DiamxNos Inner DiamxNos Diam x Nos Diam x Nos Kgs
B01 08 200 01 7.875 200 Flat 2 19 x 10 16 x 15
B01 08 200 02 7.875 200 Concave 2 19 x 10 16 x 8 16 x 7
B01 08 200 03 7.875 200 Convex 2 19 x 10 16 x 8 16 x 7
B01 08 203 01 8 203 Flat 2 19 x 10 16 x 16
B01 08 203 02 8 203 Concave 2 19 x 10 16 x 8 16 x 8
B01 08 203 03 8 203 Convex 2 19 x 10 16 x 8 16 x 8
B01 08 216 01 8.5 216 Flat 2 19 x 10 16 x 16
B01 08 216 02 8.5 216 Concave 2 19 x 10 16 x 10 16 x 10
B01 08 216 03 8.5 216 Convex 2 19 x 10 16 x 8 16 x 8
B01 08 225 01 8.85 225 Flat 2 19 x 10 16 x 16
B01 08 225 02 8.85 225 Concave 2 19 x 10 16 x 10 16 x 10
B01 08 225 03 8.85 225 Convex 2 19 x 10 16 x 8 16 x 8
B01 08 254 01 10 254 Flat 2 19 x 12 16 x 24
B01 08 254 02 10 254 Concave 2 19 x 12 16 x 10 16 x 14
B01 08 254 03 10 254 Convex 2 19 x 12 16 x 10 16 x 14
B01 08 281 01 11 281 Flat 3 19 x 12 16 x 30
B01 08 281 02 11 281 Concave 3 19 x 12 16 x 15 16 x 15
B01 08 281 03 11 281 Convex 3 19 x 12 16 x 9 16 x 21
B01 08 305 01 12 305 Flat 3 19 x 21 16 x 23
B01 08 305 02 12 305 Concave 3 19 x 21 16 x 12 16 x 11
