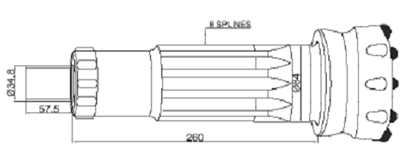

DHD 350 Bit

DHD 350 Specification

Part Number Bit Diameter Face Flushing Holes Guage Button Face Button Cone Button Weight
Suitable Hammer’s:
INCH MM Outer DiamxNos Inner DiamxNos Diam x Nos Diam x Nos Kgs
B01 05 127 01 5.0 127 Flat 2 16×8 14×10
B01 05 127 02 5.0 127 Concave 2 16×8 14×6 14×4
B01 05 127 03 5.0 127 Convex 2 16×8 14×6 14×4
B01 05 140 01 5.5 140 Flat 2 16×8 14×10
B01 05 140 02 5.5 140 Concave 2 16×8 14×6 14×4
B01 05 140 03 5.5 140 Convex 2 16×8 14×6 14×4
B01 05 152 01 6.0 152 Flat 2 16×8 16×10
B01 05 152 02 6.0 152 Concave 2 16×8 16×6 16×4
B01 05 152 03 6.0 152 Convex 2 16×8 16×6 16×4
B01 05 165 01 6.5 165 Flat 2 16×8 16×10
B01 05 165 02 6.5 165 Concave 2 16×8 16×6 16×4
B01 05 165 03 6.5 165 Covex 2 16×8 16×6 16×4
B01 05 178 01 7.0 178 Flat 2 16×8 16×12
B01 05 178 02 7.0 178 Concave 2 16×8 16×6 16×6
